OUKA / OEM

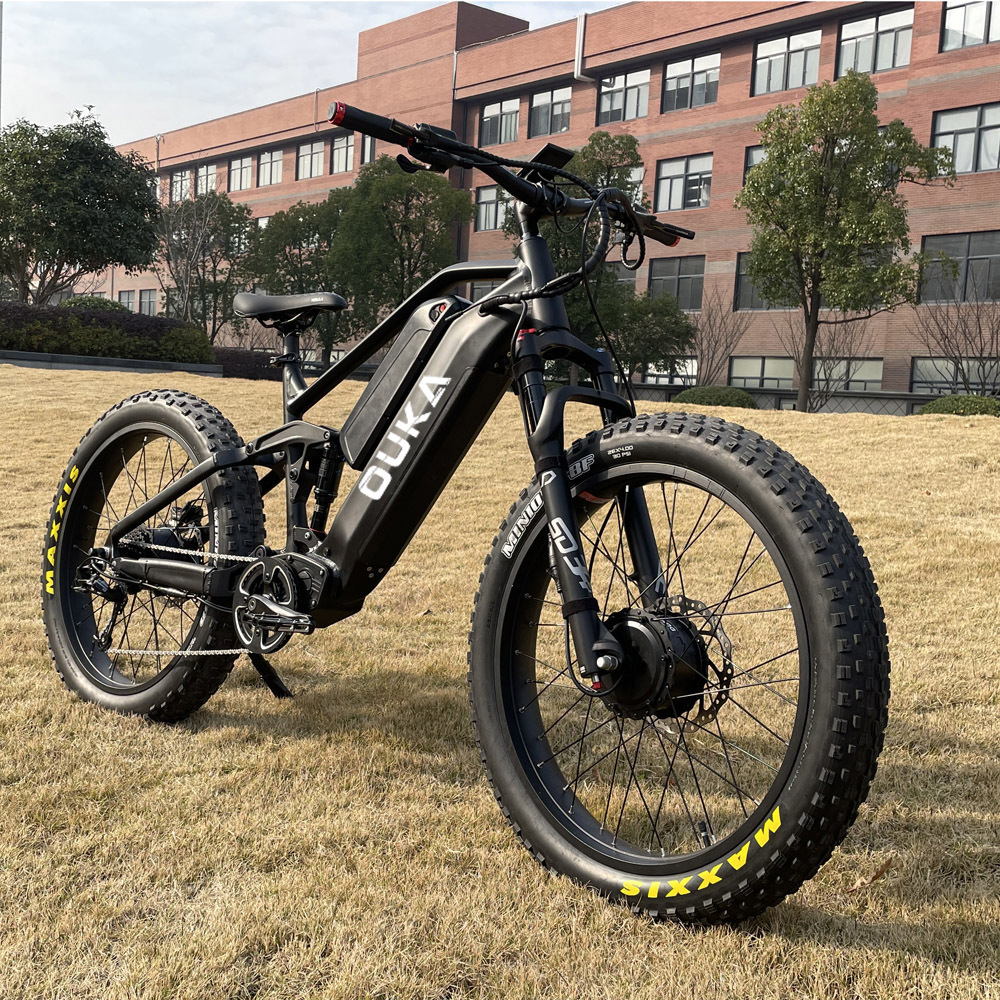

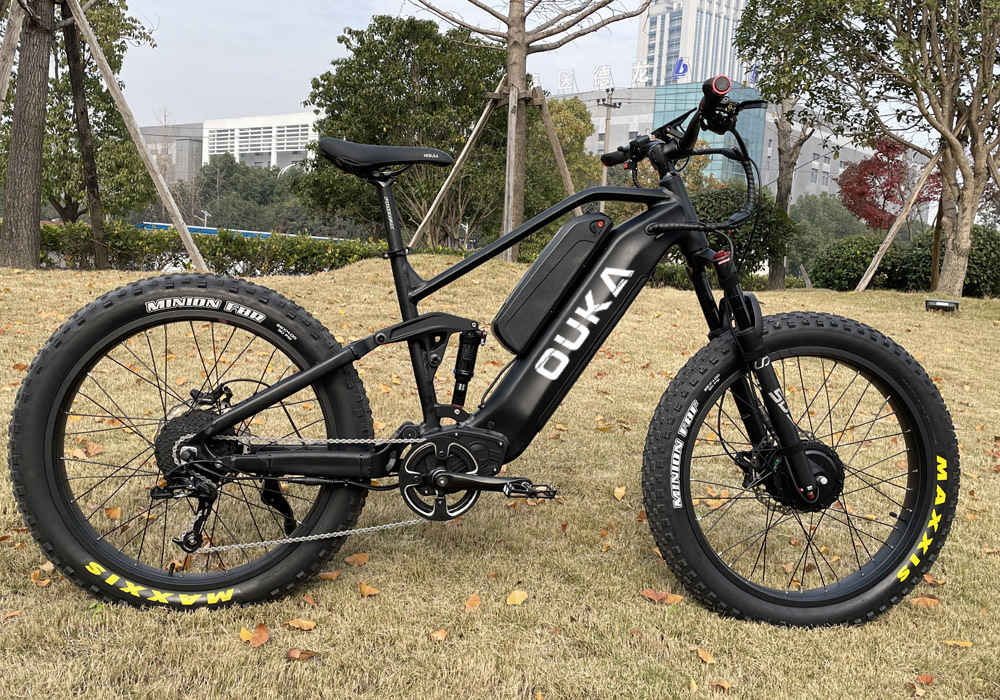

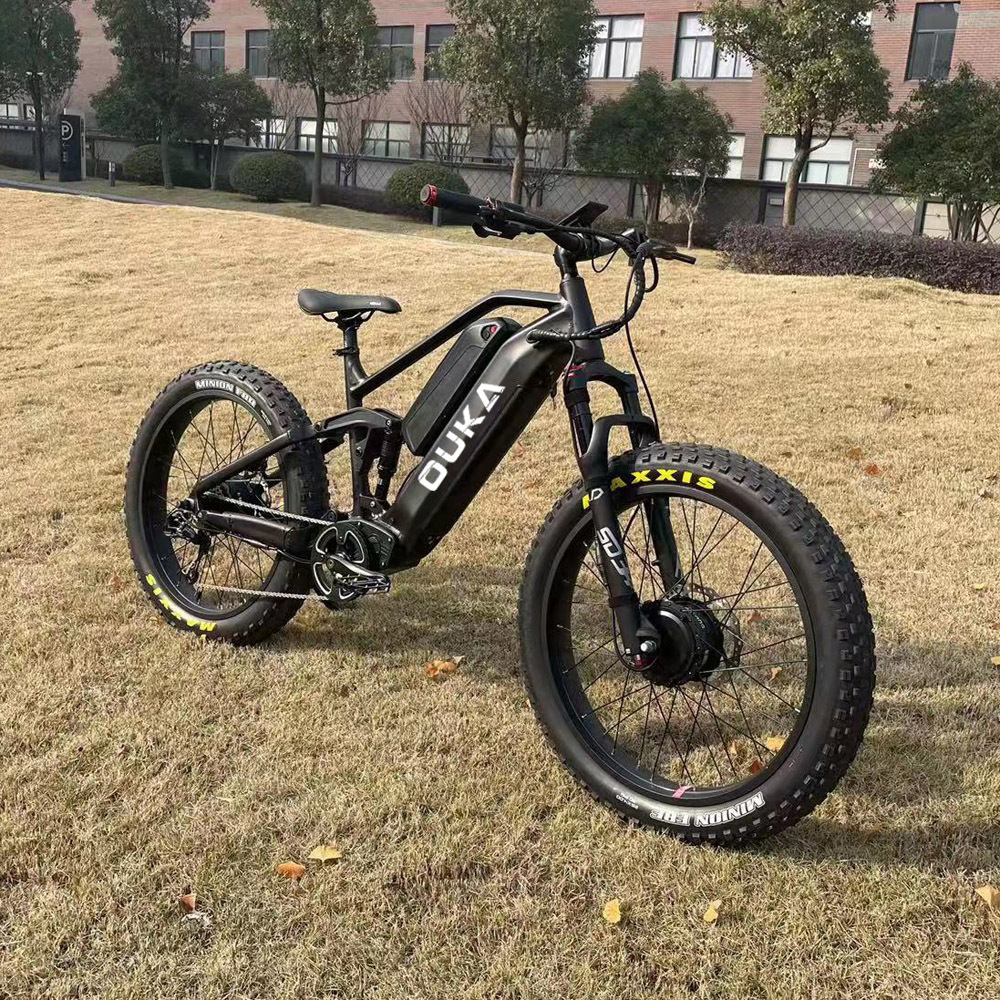

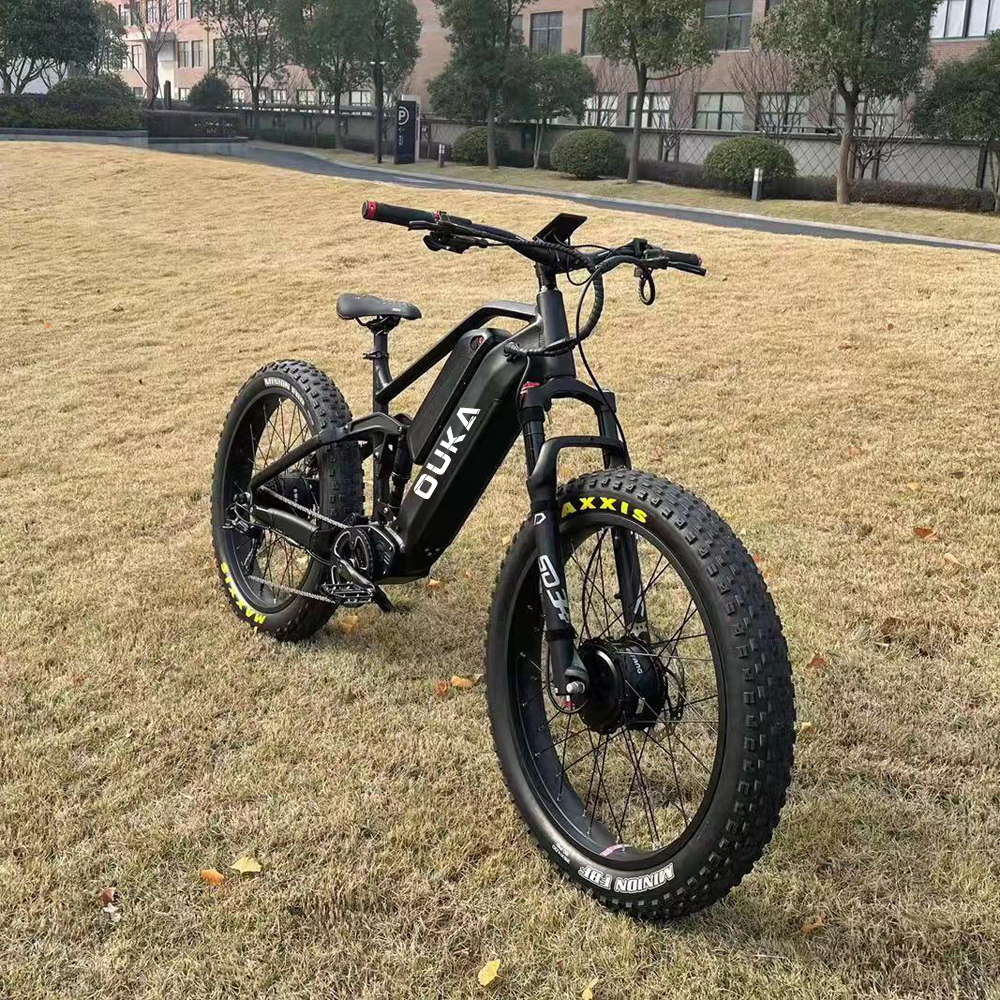

26 inch full suspension frame integrate with downtube two battery 52v 1500w dual motor fat tire electric bike
26 inch full suspension frame integrate with downtube two battery dual 52v 750w motor totally 52v 1500w dual motor fat tire electric bike
Electric System | |
Motor | Front Bafang 52v 750w (FM G060.750.D ) |
Rear Bafang 52v 750w (RM G060.750.DC ) | |
Battery | King Kong integrate hidden frame 52v 15Ah Samsung lithium battery |
Hailong downtube case 52v 15Ah Samsung lithium battery | |
Controller | 45AMP 18 tube twins controller |
Display | APT 860C color LCD display 5 speed level |
Charger | 110-240v AC 50-60HZ, 52V 4A Applied |
PAS | Bafang torque sensor |
Throttle | Thumb throttle |
Main Components | |
Frame | RC:505, head tube 160, full suspension 6061 Aluminum Alloy |
Rear shock | ROCKSHOX Mornach 190*51 |
Front Fork | UDING SD34 Aluminum alloy suspension fork |
Rims | Double wall, aluminum alloy, 36H*13G |
Tires | Maxxis 26*4.0 |
Brake | Tektro HD725 Front&Rear Hydraulic disc-brake, 203 disc wheel |
Freewheel | SRAM X9 CS920 11-34T |
Rear Derailleur | SRAM,00.7515.075.000,RD X5 9S LONG CAGE BLK |
Thumb shifter | SRAM,00.7015.178.000,X5 TRIGGER REAR 9-SPD BLK 2200MM CABLE |
Pedal | Aluminum alloy MTB pedal |
Stem | Aluminum alloy |
Brake Levers | Tektro HD725 Hydraulic disc brake with cut-off function |
Crankset | Aluminum alloy |
Fenders | Optional |
Rear Rack | Optional |
|
|
Performance | |
Max Speed | 32-42km/h |
Travel Distance | 100km by Throttle, 150km by PAS |
Loading Capacity | 120kg |
Charging Time & Life | 4-6 Hours, >700 Cycles |
N.W./G.W. | 28KG/38KG |
Carton size | 165X32X80CM |
Container Loading | 70pcs/20ft; 180pcs/40HQ |
- Motor wattage:
- 250w,500w,750w,1000w
- Motor performance:
- Gear brushless hub motor,Gearless brushless hub motor,Mid drive motor
- Motor position:
- Mid,Rear
- controller current:
- 18A,22A,25A,30A
- Display:
- LED,LCD,Color LCD
- Battery capacity:
- 9Ah,10Ah,11Ah,13Ah,15Ah
- Throttle:
- Twist throttle,Thumb throttle
- Brake:
- Disc brake
- Fork suspension:
- Yes,No
- Light:
- Yes,No
- Rear rack:
- Yes,No
- Fender:
- Yes,No
