Bafang
High allocation version bafang middle motor driving family outgoing cargo electric e bike

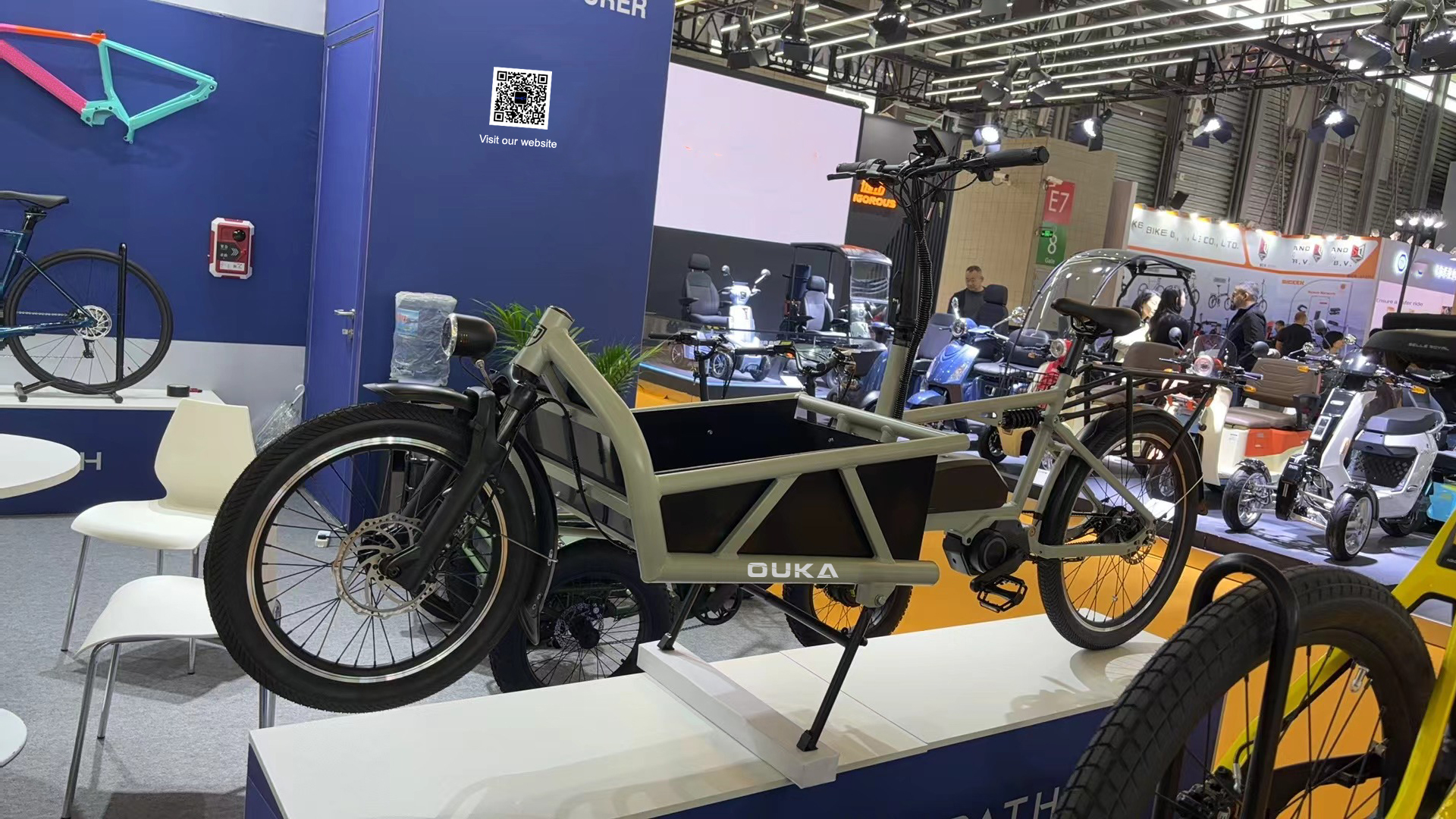

High allocation version bafang middle motor belt driving family outgoing cargo electric e bike
| Electric system | ||||
| motor | Bafang M420 / M560 center crank motor | |||
| power | 48V 250w -750w | |||
| max torque | 65N/M-120N/M | |||
| battery capacity | LG 48V 15A | |||
| max speed | 25km/h | |||
| range | 40km | |||
| PAS/throttle | pedal assist(cadence sensor） | |||
| display | LCD intellgent display 5 speed with screen | |||
| controller | Bafang inner intelligent controller | |||
| charger | AC 100V-240V 2amps | |||
| Gear & brake | ||||
| derailleur | Nexus | |||
| gears | Nexus inner 3 speed | |||
| shifter | Nexus 3 speed | |||
| brake | front and rear Tektro hydraulic disc brake | |||
| brake lever | front and rear Tektro hydraulic brake lever | |||
| Other specification | ||||
| frame | Al-alloy 6061 | |||
| tyre | front 24x2.125 rear 26x2.125 | |||
| chain | Gates belt drive | |||
| front fork | rigid fork | |||
| saddle&grip | confortable saddle&grip | |||
| seat post&stem | promax set | |||
| mudguards | front and rear full fender | |||
| rear carrier | Yes | |||
| front LED light | front LED light power by battery | |||
| charge time | 8-9h | |||
| packing size | / | |||
| max load | 120kgs for rider, 100kg for cargo load | |||
- Motor wattage:
- 250w , 500w, 750w
- Motor performance:
- Mid drive motor
- Motor position:
- Mid
- controller current:
- Display:
- LCD, Color LCD
- Battery capacity:
- 10.4Ah, 15Ah, 20.8Ah
- Throttle:
- Twist throttle, Thumb throttle
- Brake:
- Hydraulic disc brake
- Fork:
- Alolly rigid fork
- Light:
- F & R LED light
- Rear basket:
- Middle cargo box
- Fender:
- F & R fender
- Voltage:
- 36v, 48v
- Battery quantity:
- Single battery, Double battery
