OUKA / OEM

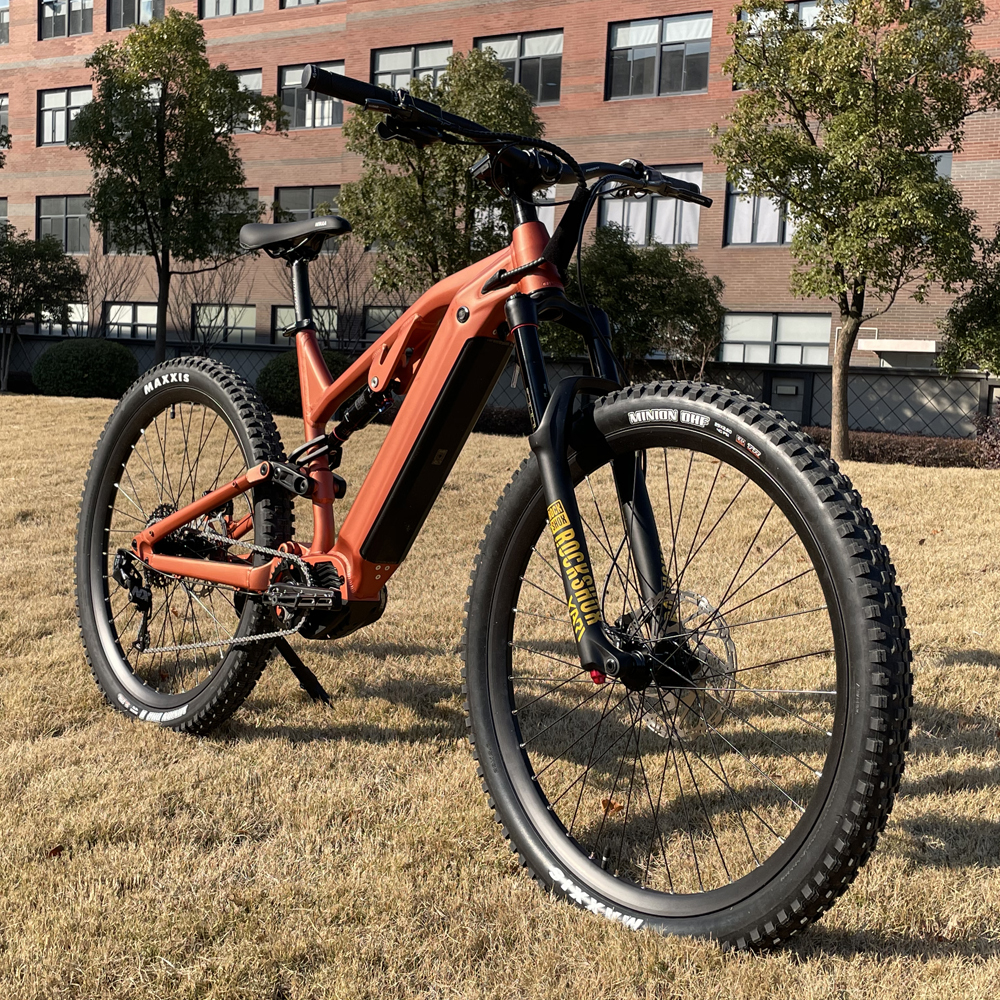

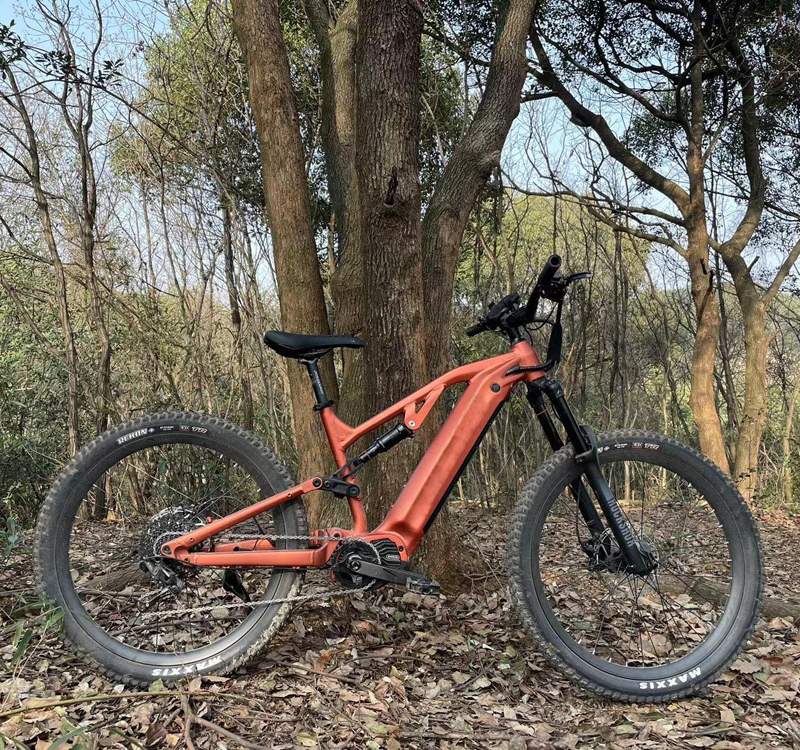

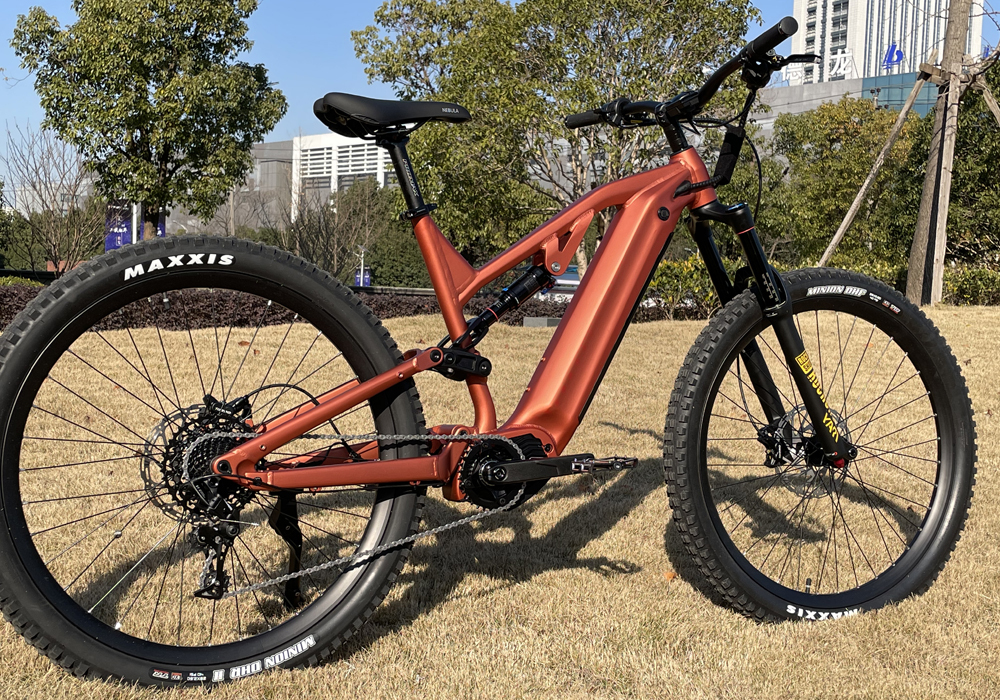

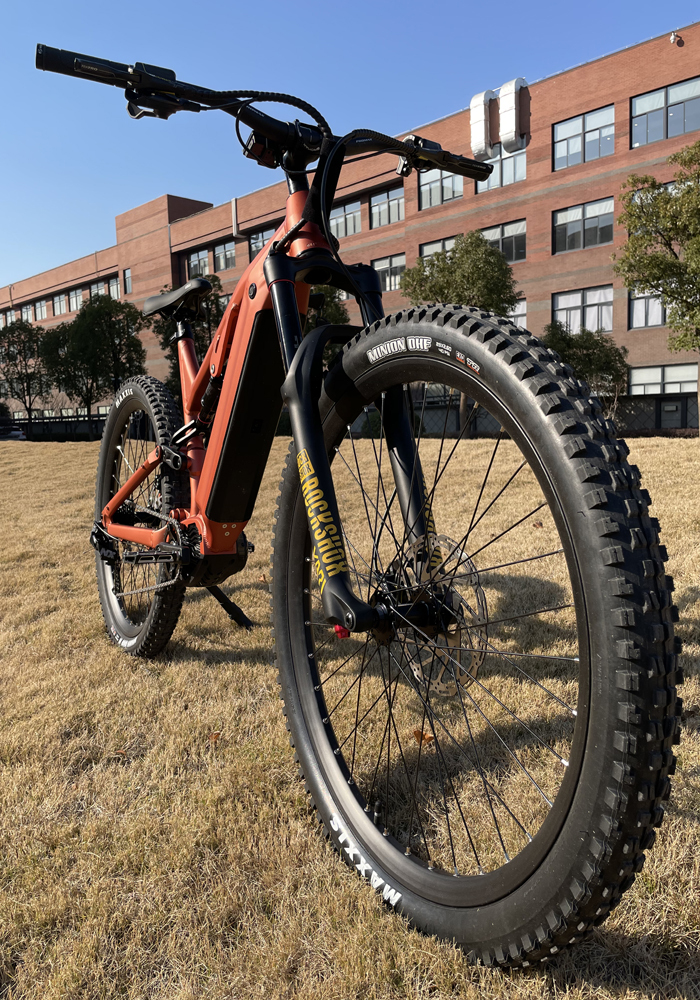

Bafang m600 g521 48v 500w mid drive motor full suspension electric mountain bicycle
OEM frame mounted battery Bafang m600 g521 48v 500w mid drive motor e-mtb full suspension electric mountain bike
| Electric System | |
| Motor | Bafang, M600 48V 500W mid drive motor |
| Battery | Samsung, 48V 20Ah frame mounted lithium battery |
| Controller | 48V 22A Integrated controller |
| Display | Bafang Color LCD display |
| Charger | 110-240v AC 50-60HZ, 48V2A UL Applied |
| PAS | Torque sensor |
| Throttle | Thumb throttle |
| Main Components | |
| Frame | 6161 Aluminum Alloy, 27.5 inch. Rear shock : Rockshox Monarch RL suspension with lockout |
| Front Fork | Rock Shox REBA RL,Hydraulic suspension, Aluminum alloy, adjustable. |
| Rims | Double wall, aluminum alloy, 36H*13G |
| Tires | Maxxis, 27.5 *2.2 tire |
| Brake | Front&Rear Hydraulic disc-brake with 180mm rotor |
| Speed Gears | Shimano 9 speeds M4000 |
| Light | Front LED light with horn |
| Rear Derailleur | Shimano 9 speeds M4000 |
| Saddle | SR Silica gel Comfortable Saddle |
| Pedal | Wellgo, aluminum |
| Stem | Promax, Aluminum alloy |
| Brake Levers | Included in the Hydraulic brake, with cut-off function |
| Crankset | Aluminum, 46T |
| Fenders | NO |
| Rear Rack | NO |
| Performance | |
| Max Speed | 42-45km/h |
| Travel Distance | 45km by Throttle, 55-70km by PAS |
| Loading Capacity | 120kg |
| Charging Time & Life | 4-6 Hours, >900 Cycles |
| N.W./G.W. | 28KG/32KG |
| Carton size | 160X26X80CM |
| Container Loading | 80pcs/20ft; 190pcs/40HQ |
- Motor wattage:
- 500w
- Motor performance:
- Torque sensor mid drive motor
- Motor position:
- Mid
- controller current:
- 25A
- Display:
- LCD,Color LCD
- Battery capacity:
- 48v 14Ah,17.5Ah
- Throttle:
- Twist throttle,Thumb throttle
- Brake:
- Disc brake,Hydraulic disc brake
- Fork suspension:
- hydraulic suspension fork,Air suspension fork
- Light:
- LED headlight & taillight
- Rear rack:
- No
- Fender:
- No
