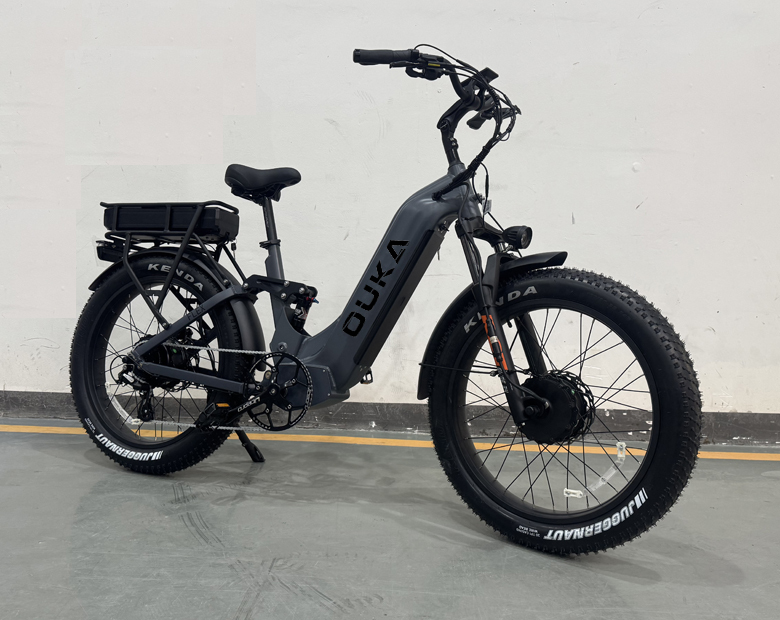

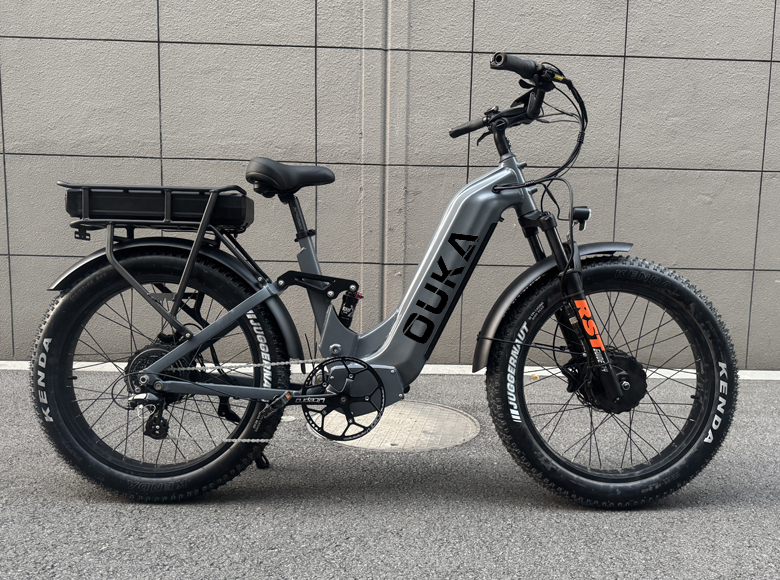

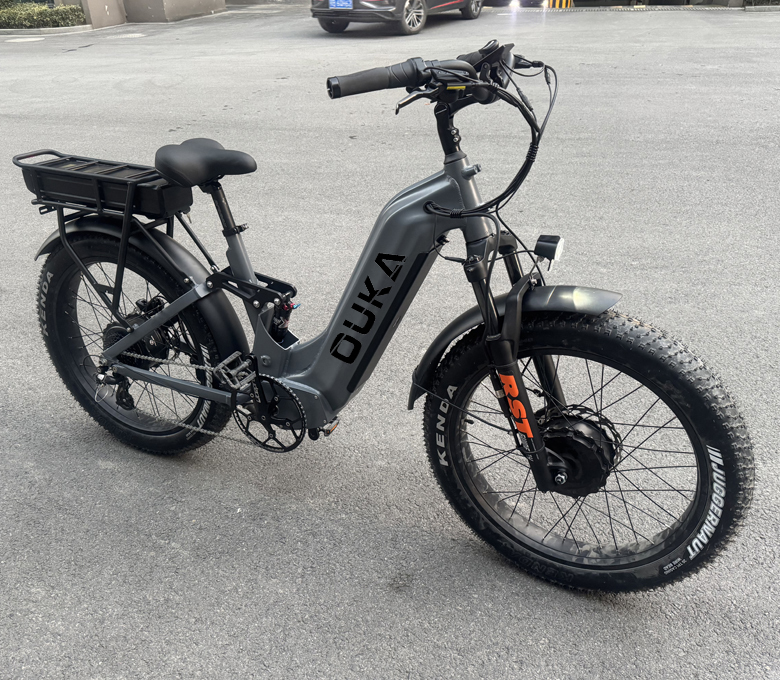

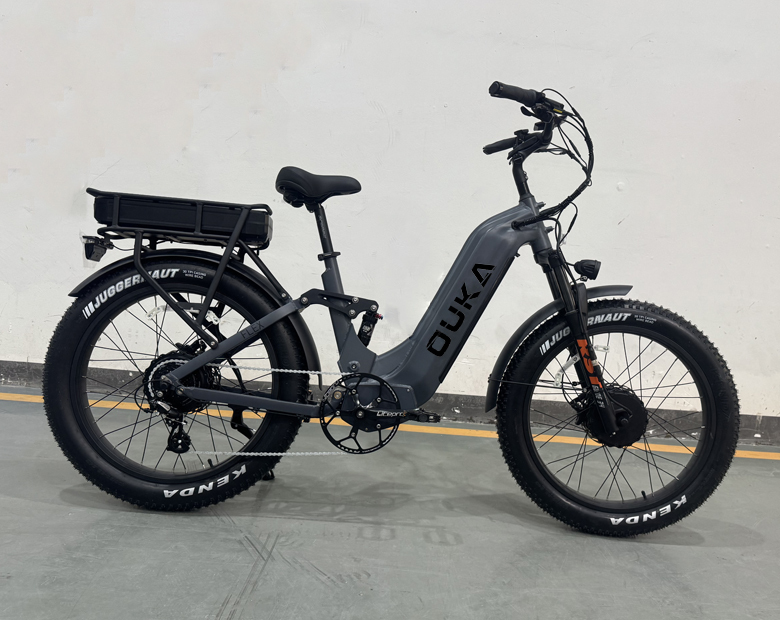

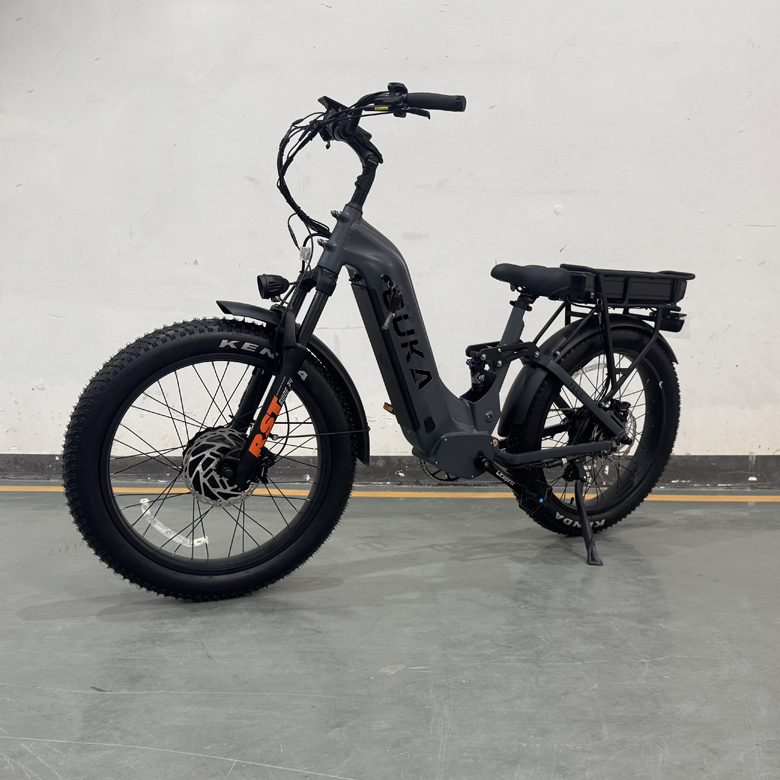

Step thru Dual 60v 1500w motor & battery 20Ah + 15Ah full suspension fat tire electric bicycle with rear rack battery

Electric System

Motor

Front Hentach 60v 750w -1500w

Rear Hengtach 60v  750w-1500w

Battery

Integrate hidden frame 60v 20Ah Samsung lithium battery

Hailong / rear rack downtube case 60v 15Ah Samsung lithium battery

Controller

25AMP 18 tube twins controller

Display

color LCD display 5 speed level

Charger

110-240v AC 50-60HZ, 60V 4A  Applied

PAS

Pedal assist sensor

Throttle

Thumb throttle

Main Components

Frame

RC:505,  head tube 160, full suspension 6061 Aluminum Alloy

Rear shock

DNM 190*51

Front Fork

UDING SD34 Aluminum alloy suspension fork

Rims

Double wall, aluminum alloy, 36H*13G

Tires

Maxxis 26*4.0

Brake

Tektro E3940 Front&Rear Hydraulic disc-brake, 203 disc wheel

Freewheel

SRAM X9 CS920 11-34T

Rear Derailleur

SRAM,00.7515.075.000,RD X5 9S LONG CAGE BLK

Thumb shifter

SRAM,00.7015.178.000,X5 TRIGGER REAR 9-SPD BLK 2200MM CABLE

Pedal

Aluminum alloy MTB pedal

Stem

Aluminum alloy

Brake Levers

Tektro Hydraulic disc brake with cut-off function

Crankset

Aluminum alloy

Fenders

Optional

Rear Rack

Optional

Performance

Max Speed

32-42km/h

Travel Distance

100km by Throttle, 150km by PAS

Loading Capacity

120kg

Charging Time & Life

4-6 Hours, >700 Cycles

N.W./G.W.

28KG/38KG

Carton size

165X35X90CM

Container Loading

70pcs/20ft;  180pcs/40HQ
